High Current 3-Pole Switch with Illuminated Panel for Water Heater and AC Control

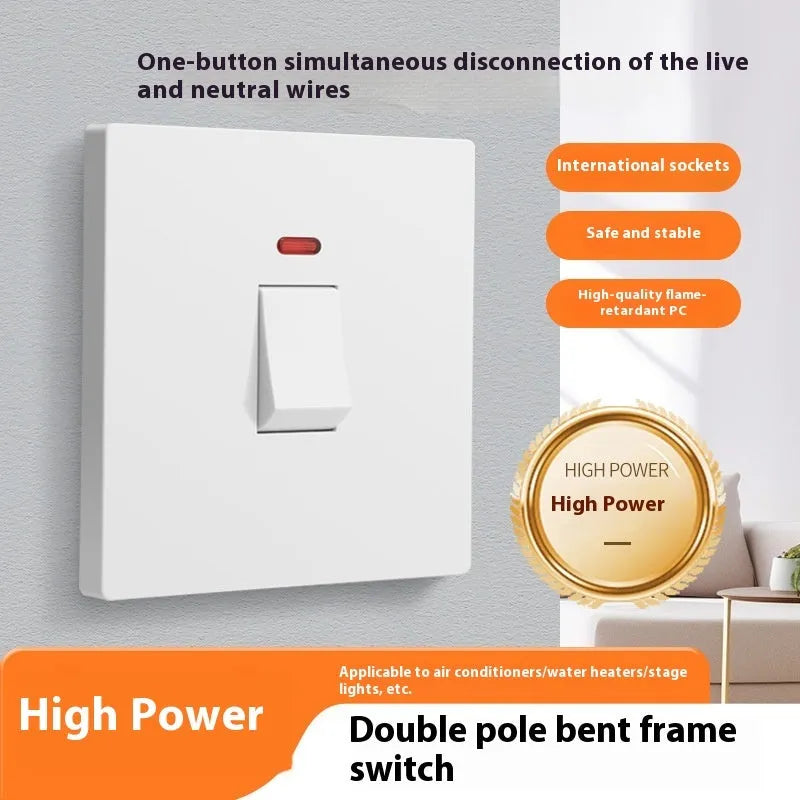

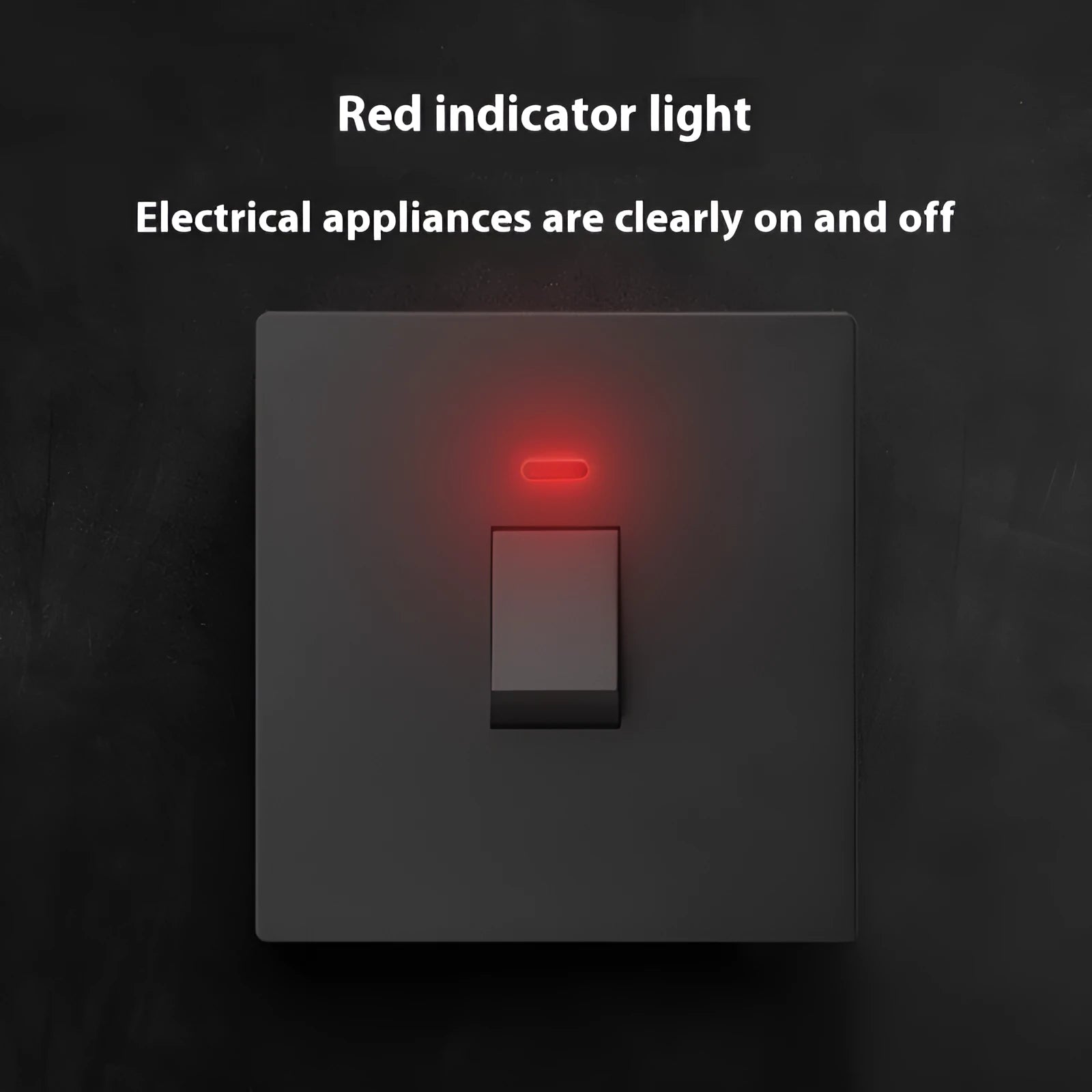

Designed for integration into electrical panels, this curved rack switch provides a reliable and visible means of isolating power to high-demand appliances. Its core function is to offer a safe, manual disconnect point for equipment like water heaters and air conditioners, which require substantial electrical current. The inclusion of a panel light delivers an immediate visual confirmation of the switch's position, a practical feature for maintenance or emergency situations. With current ratings of 25A and 45A, and a three-pole configuration, it is built to handle the specific demands of these appliance circuits.

Features and Construction

This switch is engineered with specific characteristics for safe and effective high-current switching in professional and domestic electrical installations.

Material and Build

The switch utilises a plastic housing, which provides the necessary electrical insulation for safe operation. The internal mechanism includes metallic contacts designed for the repeated making and breaking of high electrical loads. The double-break design aims to create two separate points of contact separation within the switch, which can help to extinguish any electrical arc more effectively than a single-break system, contributing to safer operation and potentially longer contact life under high current conditions.

Size and Practical Fit

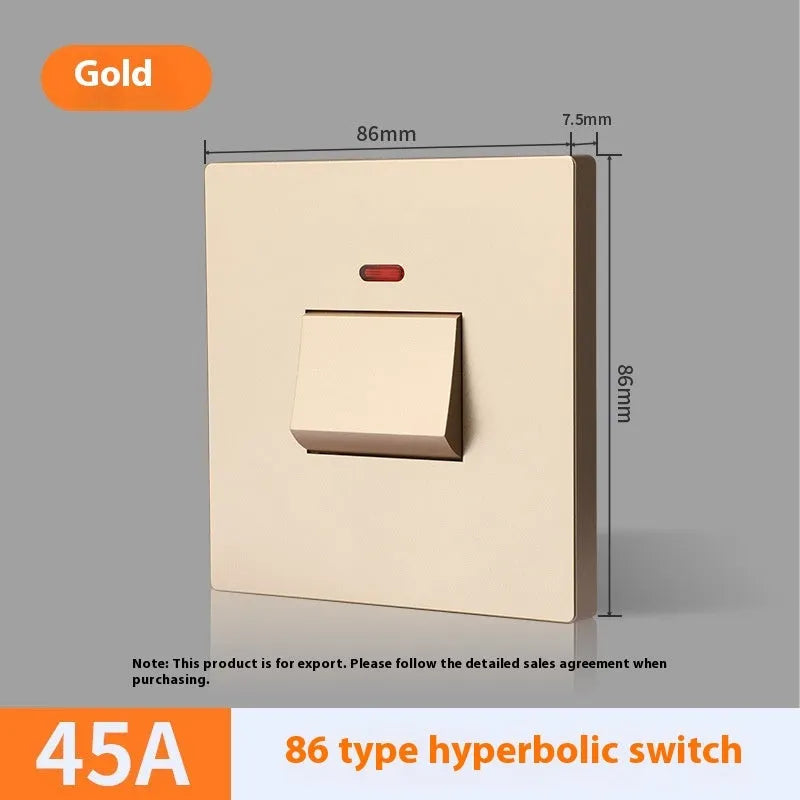

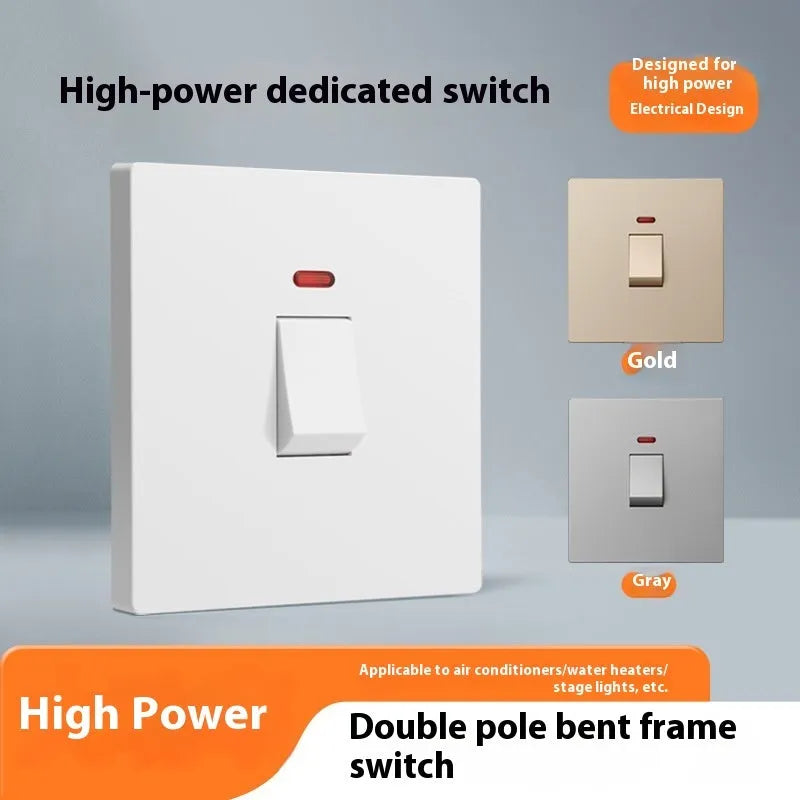

The product has a specified weight of 128 grams, indicating a compact and relatively lightweight component designed for panel mounting. It is part of a curved rack switch series, meaning it is shaped to fit neatly into a curved or profiled electrical enclosure. The product is offered in three distinct colour finishes—gold, grey, and white—providing options to coordinate with different panel designs or colour schemes.

Uses and Placement

This component serves a specific role within broader electrical systems, primarily where controlled, high-power distribution is required.

Event or Professional Use

In commercial or industrial settings, such switches are commonly installed in distribution boards controlling dedicated circuits for HVAC systems, commercial water heating tanks, or other high-power machinery. The 3P configuration and high amp ratings make it suitable for these demanding applications where complete circuit isolation is necessary for safety during servicing.

Everyday Home Use

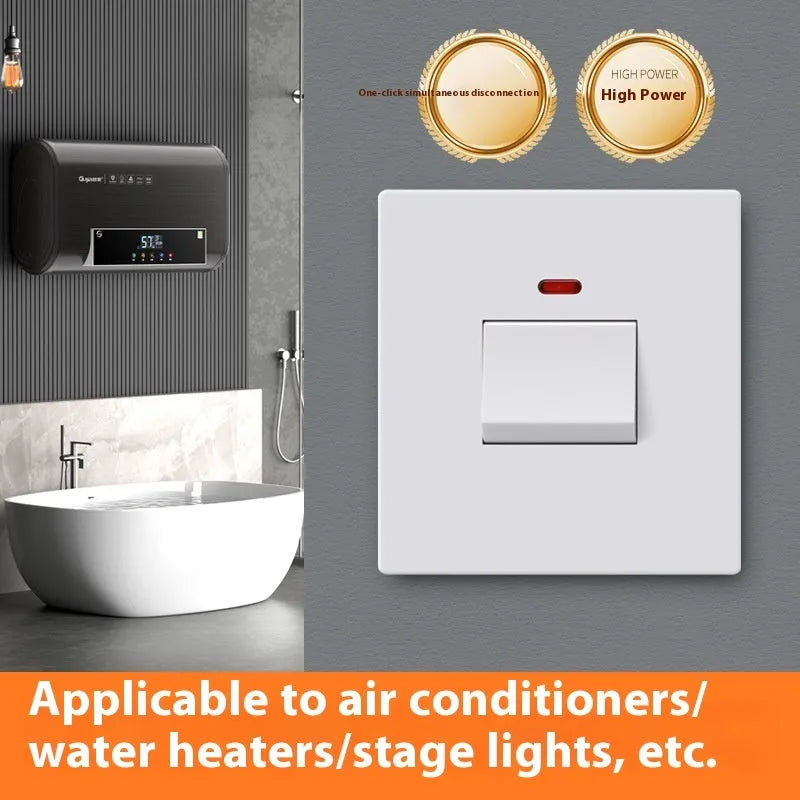

In residential properties, a switch of this type could be installed on the circuit for a domestic air conditioning unit or an electric water heater. It provides homeowners or technicians with a dedicated, localised point to completely shut off power to these appliances, which is a recommended safety practice for any maintenance or repair work, or in case of an emergency.

Benefits and Buying Value

The value of this electrical component lies in its specific design features that address safety and functionality in high-current applications.

Reuse and Low Maintenance

As a fundamental electrical component, its lifecycle involves reliable operation over many cycles. The double-break mechanism is a design feature intended to enhance the longevity and safety of the switching action. Proper installation and use within its specified ratings are the primary factors for sustained, maintenance-free performance.

Why Choose This Product

This switch offers a combination of high-current capacity (25A/45A), three-pole disconnection, and an illuminated indicator in a single unit. For anyone specifying components for a water heater or air conditioning circuit, these integrated features—the status light for immediate visual feedback and the 3P design for complete circuit isolation—provide a level of functionality and safety that may not be present in a basic, unlit single or double-pole switch.
