1.3-inch IPS LCD Display with 240x240 Resolution and Adjustable Viewing Direction

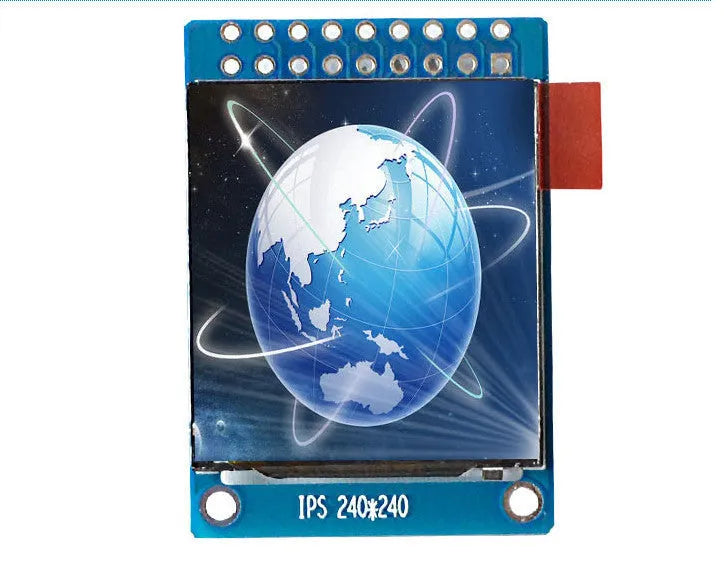

This 1.3-inch IPS LCD module delivers enhanced visual performance for embedded systems and DIY electronics projects. Featuring a high-definition IPS colour screen that produces more vivid colours than standard TFT LCD technology, this display offers practical advantages for applications requiring clear visual feedback. With its 240x240 square resolution and flexible interface options, it provides a reliable solution for integrating quality displays into compact designs where space is at a premium but visual clarity cannot be compromised.

Technical Specifications and Display Quality

The module combines precise engineering with practical functionality, offering specific measurements and performance characteristics that make it suitable for both prototyping and production applications. From its physical dimensions to its operating parameters, every aspect has been defined to provide clear integration guidelines for engineers and hobbyists alike.

Compact Physical Dimensions

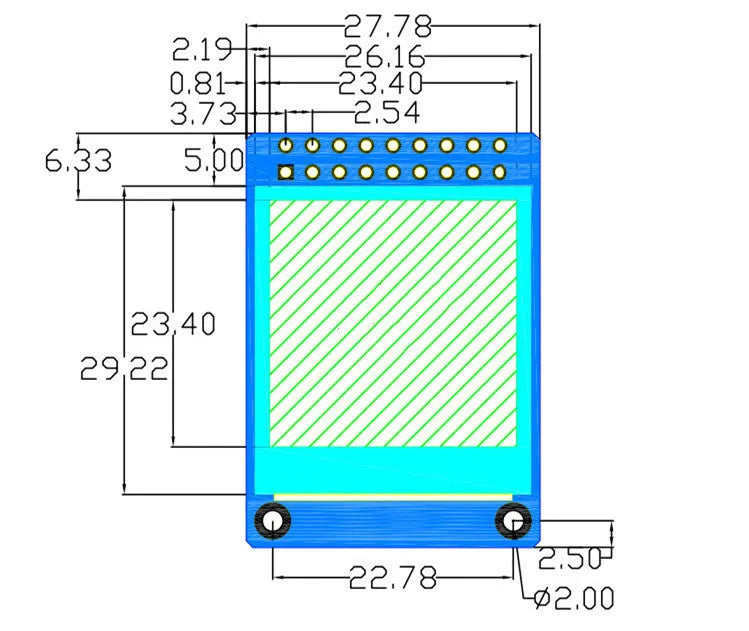

With a total physical size of 27.78mm by 39.22mm, this display module fits into space-constrained designs while providing a usable display area of 23.4mm by 23.4mm. The 1.3-inch diagonal measurement represents an optimal balance between screen real estate and compact form factor, making it suitable for portable devices, instrumentation panels, and embedded systems where every millimetre counts. The square 240x240 resolution provides a 1:1 aspect ratio that works well for displaying icons, sensor readings, and user interface elements.

Interface and Control Specifications

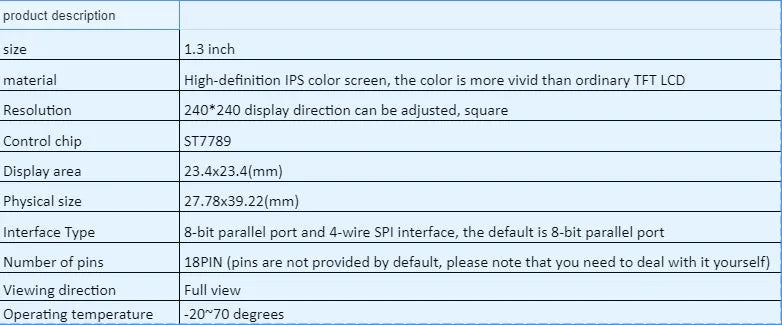

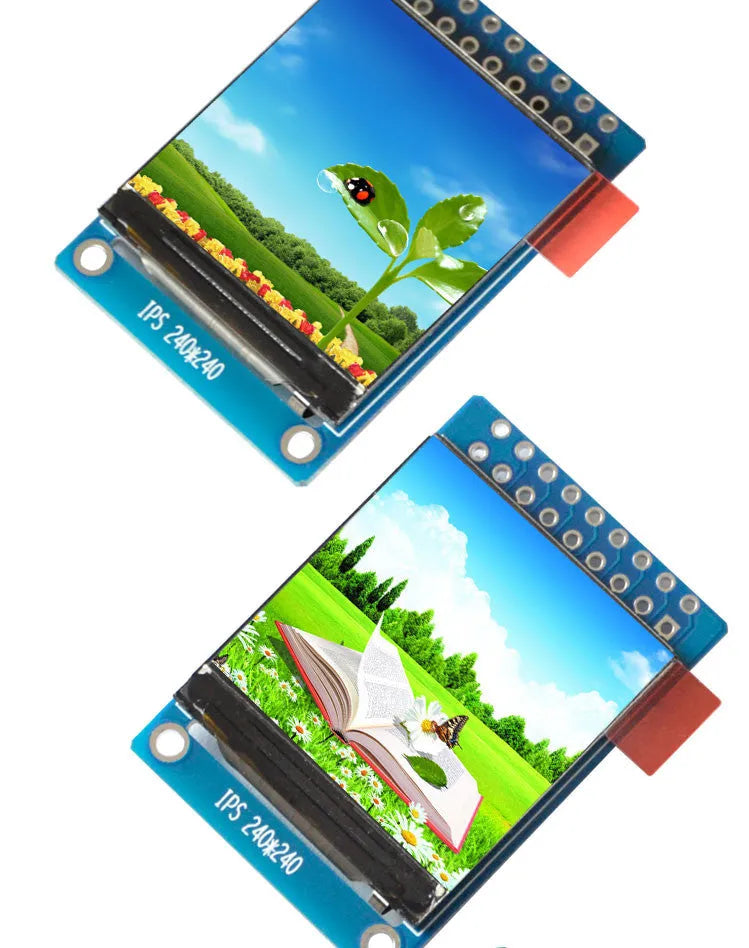

Powered by the ST7789 control chip, this display supports both 8-bit parallel port and 4-wire SPI interfaces, with the 8-bit parallel port configured as the default connection method. The 18-pin interface requires careful attention as pins are not supplied by default, necessitating that users source appropriate connectors for their specific application. The display direction can be adjusted through software commands, allowing flexibility in how the visual content is oriented relative to the physical mounting of the module within your project enclosure or panel.

Environmental Performance and Reliability

Designed to operate across a temperature range of -20°C to 70°C, this display maintains consistent performance in environments that would challenge less robust components. The full-view direction capability of the IPS technology ensures that the screen remains readable from multiple angles without significant colour shift or contrast reduction. This combination of thermal tolerance and viewing flexibility makes the module suitable for applications ranging from indoor consumer electronics to industrial equipment that may experience variable temperature conditions.

Practical Applications and Integration

From professional embedded systems to educational electronics projects, this display module serves multiple roles in the development and deployment of interactive devices. Its specific technical characteristics lend themselves to particular use cases where measurable performance parameters directly impact the success of the final product.

Professional Embedded Development

For engineers developing commercial products, the 1.3-inch IPS display offers a cost-effective visual interface solution with professional-grade specifications. The 240x240 resolution provides sufficient pixel density for displaying text, graphics, and basic user interface elements in control panels, medical devices, or test equipment. The dual interface options allow integration with various microcontroller families, while the wide operating temperature range ensures reliability in products destined for diverse environmental conditions. The adjustable display direction simplifies mechanical design constraints by allowing software correction of orientation issues.

DIY Electronics and Maker Projects

Hobbyists and educators will appreciate the vivid colour reproduction of the IPS panel, which brings projects to life with richer hues than standard TFT displays. The tactile experience of integrating a quality display enhances project satisfaction, with the clear 240x240 resolution making code-generated graphics appear sharp and defined. When connected to popular development boards, the display responds with immediate visual feedback that confirms successful communication between components. The 23.4mm by 23.4mm active area provides sufficient space for creative interface designs while remaining manageable for those new to display integration.

Versatile Display Solutions

Measurable Benefits and Value Considerations Beyond the basic specifications, this display module delivers tangible advantages that impact both development efficiency and final product quality. Each technical characteristic translates to practical benefits that users experience throughout the product lifecycle, from initial prototyping to long-term deployment.

Long-Term Value and Compatibility

User Experience and Integration ConfidenceReasons for Selection and ImplementationWhen choosing a display for your next project, consider how the specific measurements of this 1.3-inch IPS module align with your requirements. The 240x240 resolution provides 57,600 individually addressable pixels for detailed graphics, while the 23.4mm square active area delivers a usable canvas within compact dimensions. The dual interface options offer connection flexibility that adapts to your microcontroller's capabilities rather than forcing component changes. By selecting this display with its documented specifications and performance characteristics, you're incorporating a known quantity into your design—one that will deliver consistent visual performance from prototype through to production.
