PWM DC Motor Governor for 5V-35V Speed Regulation with 5A Switch Function

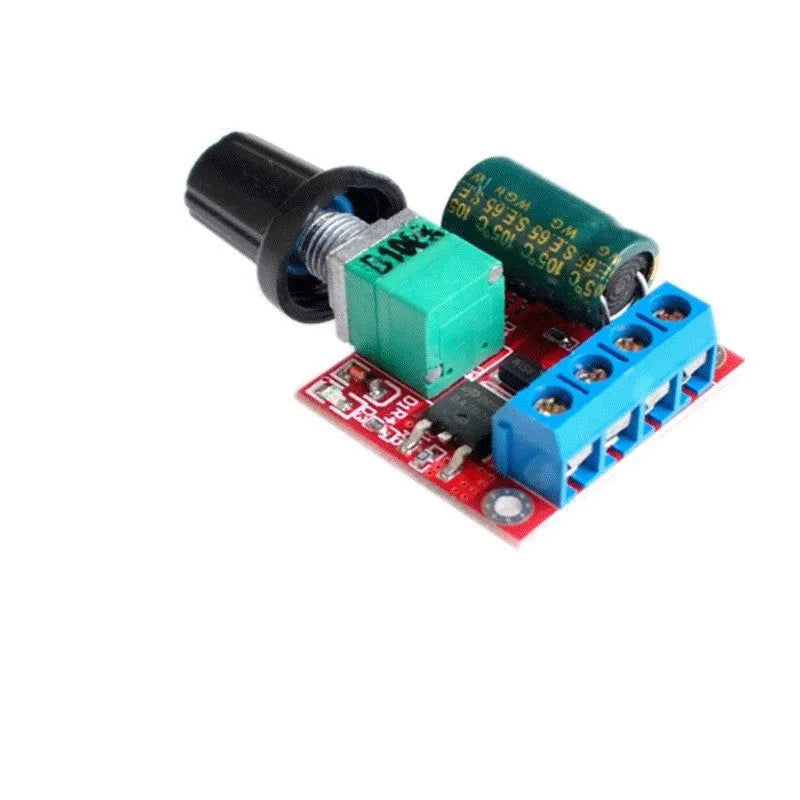

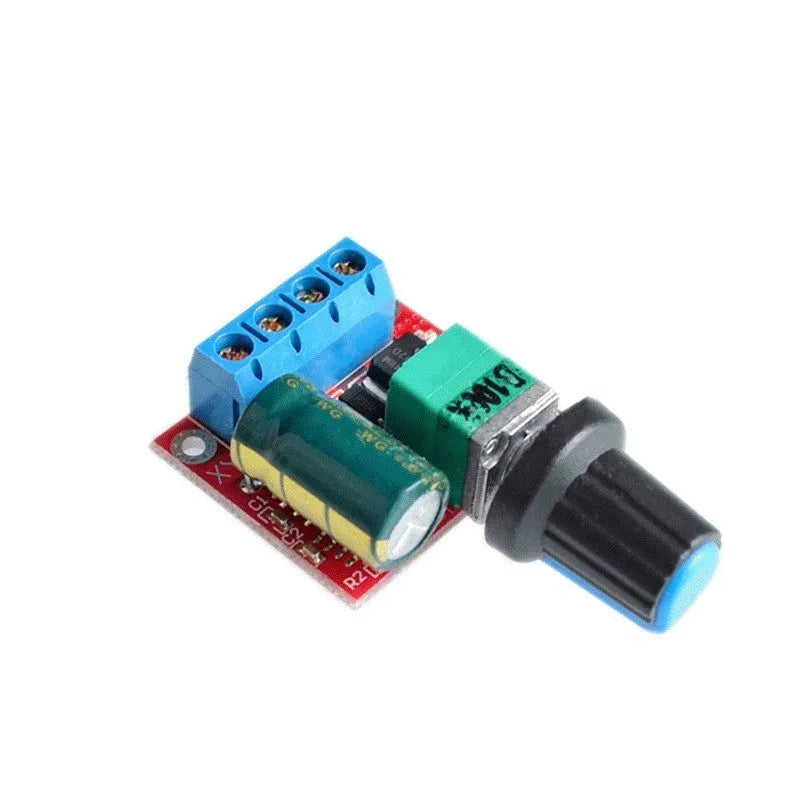

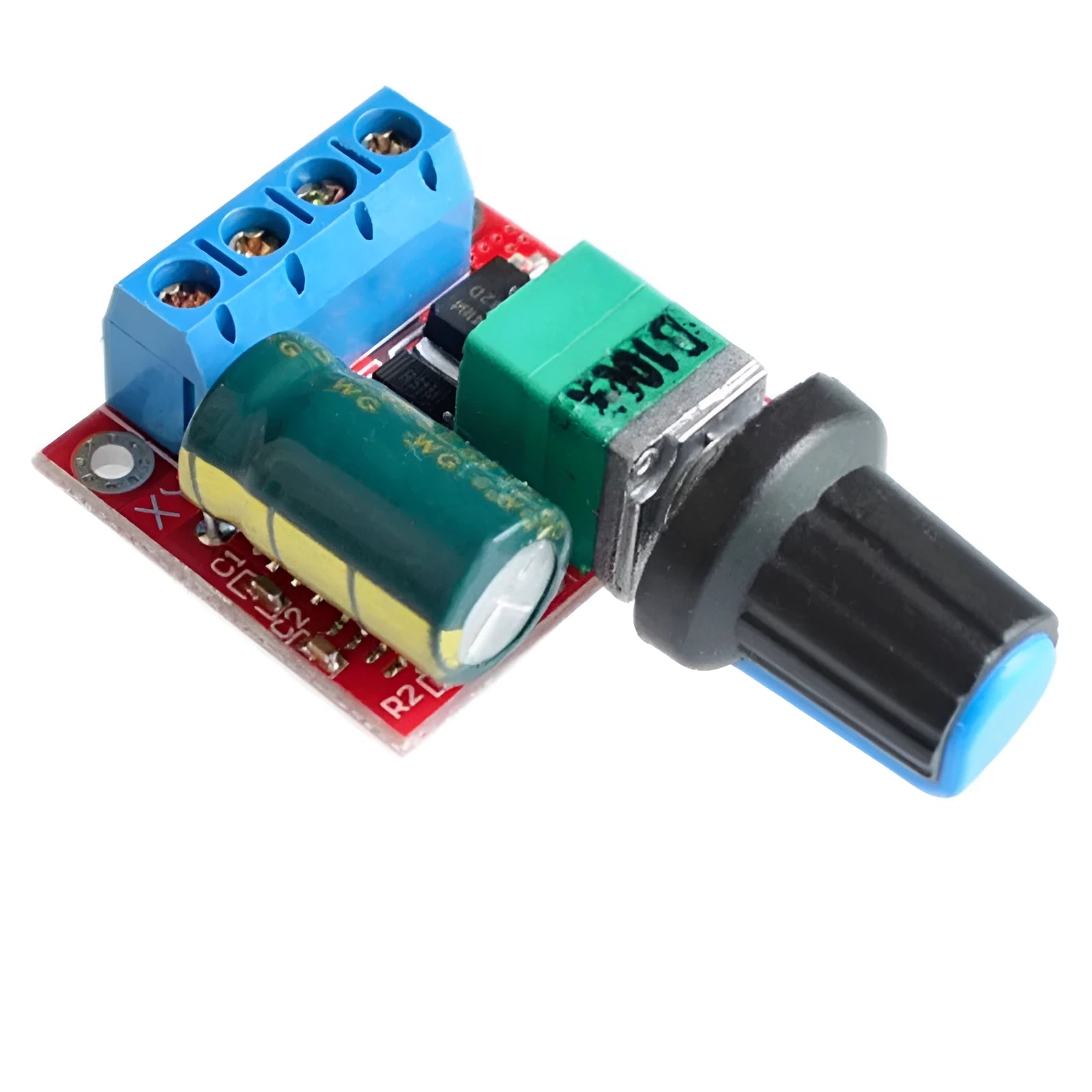

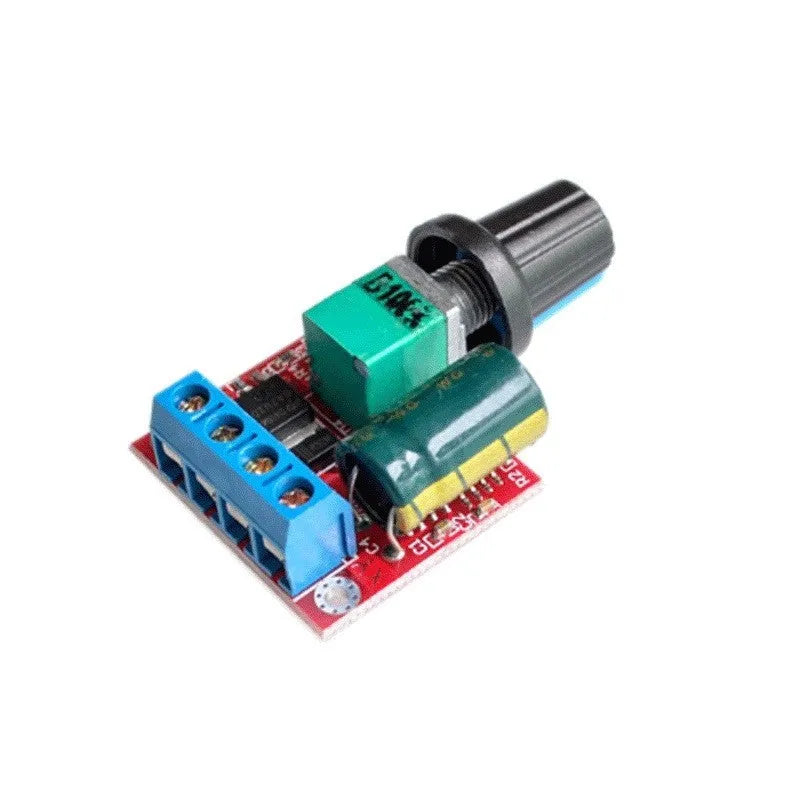

This PWM DC motor governor is designed for hobbyists, makers, and professionals needing reliable speed control for DC motors in applications such as model vehicles, small tools, and automated projects. It operates on a wide DC voltage range from 4.5V to 35V, offering a 0-5A output current and 90W of power handling. The compact size, at just 30mm by 26mm by 14mm, makes it suitable for space-constrained installations. Its core function is to regulate motor speed smoothly using a 20kHz PWM signal, adjusted via a manual potentiometer knob. Crucially, it is for DC use only and must not be connected to AC mains power to avoid immediate failure.

Features and Construction

This governor combines specific electronic specifications into a practical control unit. Its construction focuses on delivering adjustable PWM output within set electrical limits.

Material and Build

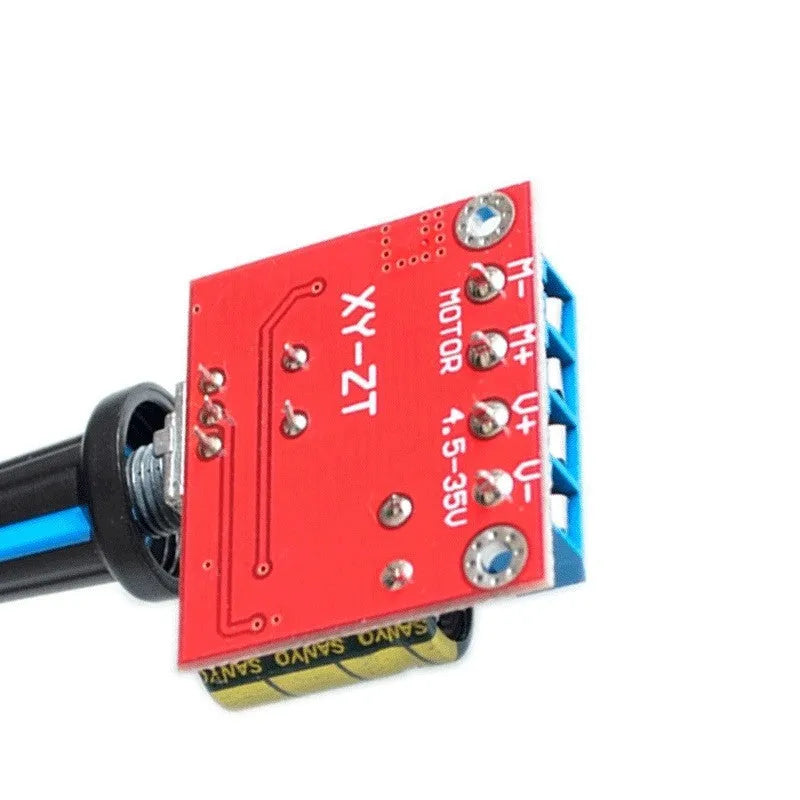

The governor is built using standard electronic components on a PCB, including the potentiometer for manual adjustment and terminals for power and motor connections. The materials are chosen for their electrical conductivity and insulation properties, ensuring the device functions within its stated 4.5V-35V DC input range. There is no external casing mentioned, so the unit is likely an open-board design suitable for integration into larger projects or enclosures.

Size and Practical Fit

With dimensions of 30mm in length, 26mm in width (excluding the adjustment handle), and 14mm in height, this governor has a very compact footprint. This small size allows it to be fitted into tight spaces within robotic assemblies, custom electronics boxes, or model chassis. The exclusion of the handle from the width measurement is important for planning physical layouts where the knob protrudes.

Uses and Placement

The governor's voltage and current ratings define its suitable applications, from hobbyist workshops to light industrial settings.

Event or Professional Use

In professional or educational environments, such as engineering workshops or prototyping labs, this governor can be used to control motors in demonstration rigs, automated feeding mechanisms, or ventilation fans. The 5A, 90W capacity makes it suitable for driving small conveyor belts, pump motors, or other auxiliary equipment in controlled settings where variable speed is beneficial.

Everyday Home Use

For DIY enthusiasts and home workshop projects, this unit is ideal for controlling the speed of DC motors in tools like bench grinders, hobbyist CNC routers, or custom cooling systems for computers or grow tents. The simple potentiometer control offers an intuitive way to adjust speed without complex programming, making it accessible for users building custom projects from scratch.

Benefits and Buying Value

The value of this governor lies in its specific capabilities for motor control and the operational guidelines provided for safe use.

Reuse and Low Maintenance

As a solid-state electronic device with no moving parts (aside from the potentiometer), it requires minimal maintenance and can be reused across multiple projects. Its durability depends on correct usage—specifically, adhering to the DC-only input and correct polarity—which prevents damage and extends its functional life. The low 7µA static current in standby helps conserve power when the controlled motor is idle.

Why Choose This Product

This governor is chosen for its clear specifications: a broad 4.5V-35V input range, 5A output, and compact size. It provides a straightforward solution for PWM-based speed control without unnecessary features. The explicit warnings about AC input and reverse polarity are crucial for user success, highlighting its design for informed users who need a reliable, specification-driven component for their DC motor applications.
