Mini Microscope Thermal Imaging Detector with 48,640-Point Measurement for Electrical Diagnostics

This specialised thermal imaging detector transforms standard microscopes into detailed thermal analysis tools for electronic and mechanical inspection. With 48,640 effective temperature measuring points arranged in a 256 by 190 grid, it captures precise thermal data across components and circuits. The device measures temperatures from -20°C to 120°C, making it suitable for identifying overheating components, electrical leakage points, and thermal anomalies during PCBA diagnostics. Featuring a Type-C interface requiring 5V input, it connects easily to power sources while maintaining a compact package size of 191mm by 171.5mm by 38mm. The unit comes complete with mounting hardware and expansion accessories, providing technicians and evaluators with a comprehensive thermal imaging solution that integrates seamlessly with existing microscope setups.

Features and Construction

The thermal imaging detector combines precise measurement capabilities with flexible mounting options for various inspection scenarios. Its core functionality centres on accurate temperature detection across thousands of measurement points, supported by practical accessories that enhance compatibility with different microscope models.

Material and Build

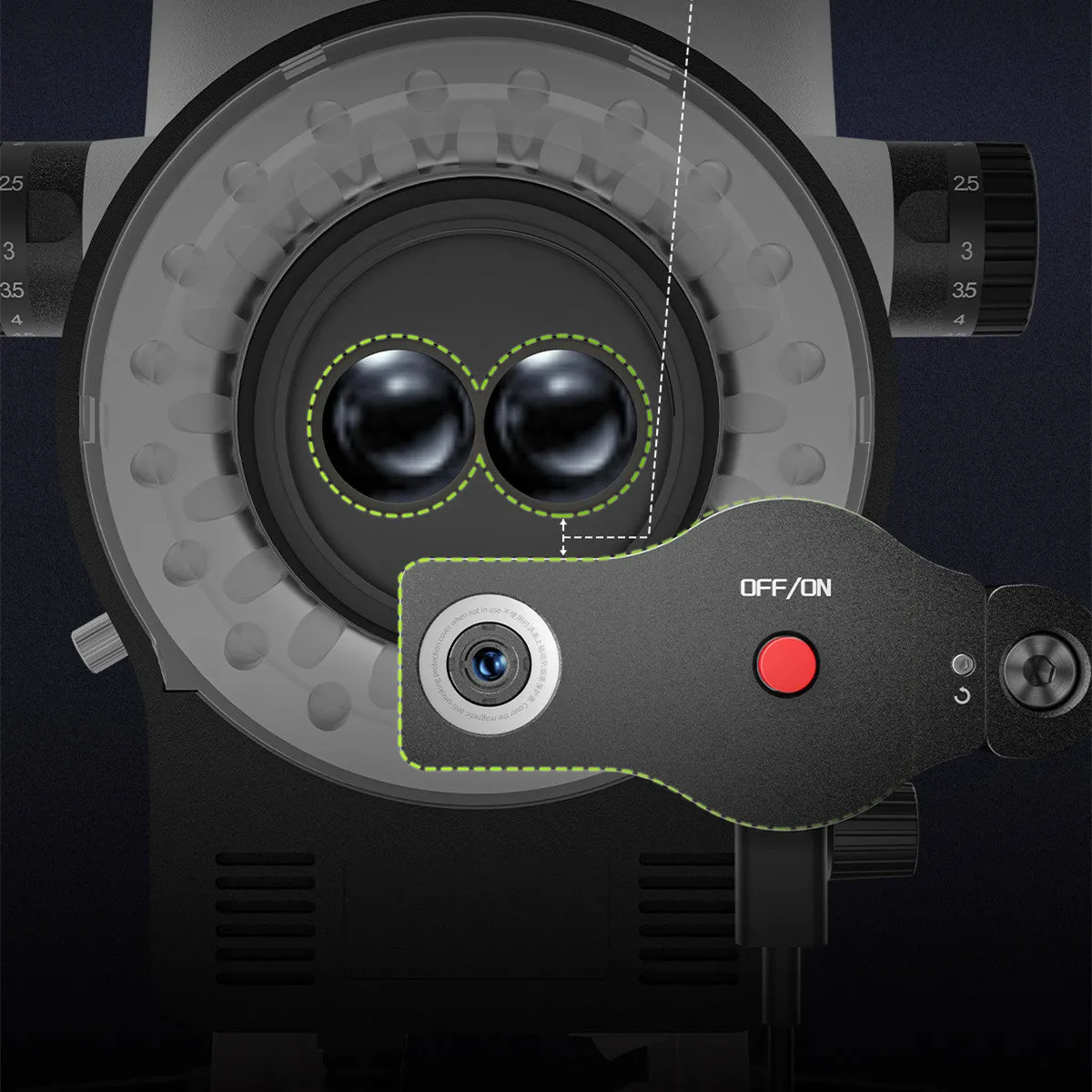

The device includes a protective cover for the thermal imaging lens, which can be positioned to block the sensor when not in use, preventing accidental damage or contamination. The rotating mechanism incorporates metal components that provide sturdy angular adjustment while maintaining position stability during operation. Construction focuses on practical durability for laboratory and workshop environments, with materials selected to withstand regular adjustment and positioning during diagnostic procedures. The Type-C interface features standard USB2.0 connectivity for reliable power delivery to the thermal imaging system.

Size and Practical Fit

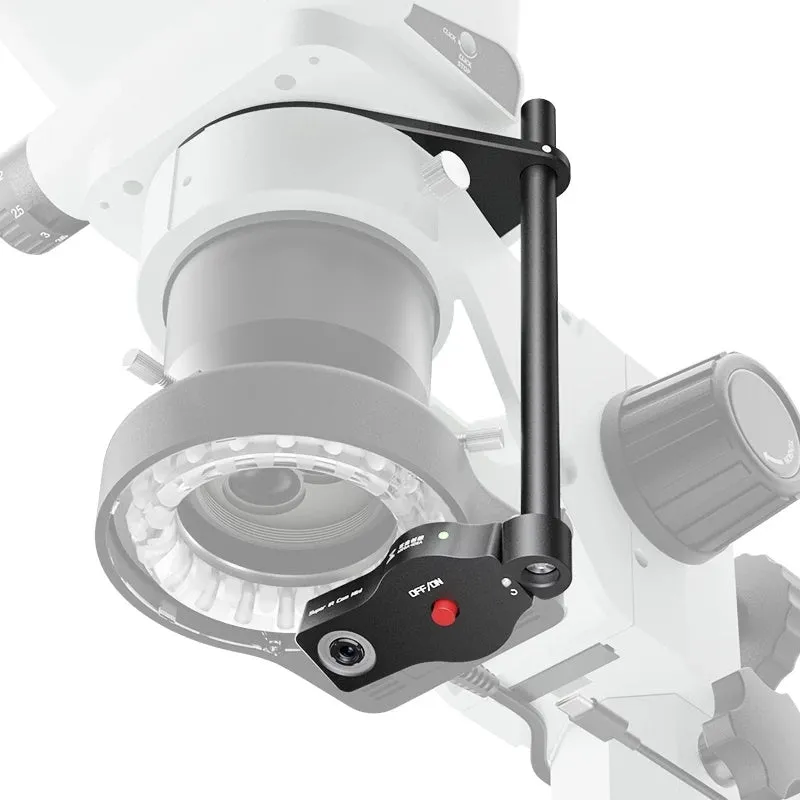

With package dimensions of 191mm by 171.5mm by 38mm, the thermal imaging detector maintains a compact profile suitable for integration with microscope systems without obstructing other equipment. The adjustable rotating mechanism accommodates different microscope heights by providing any angle of rotation, ensuring the thermal imager aligns properly with the specimen. This adjustability improves image synchronisation between visible light and thermal imaging channels, making comparative analysis more intuitive. The separate expansion bracket extends compatibility to additional microscope models beyond standard configurations, while the vertical fixing rod provides alternative mounting options for different workspace arrangements.

Uses and Placement

This thermal imaging detector serves multiple diagnostic applications in electronic, mechanical, and industrial inspection contexts. Its precise temperature measurement and visualisation capabilities support both rapid fault finding and detailed thermal analysis workflows across different professional settings.

Event or Professional Use

For professional technicians conducting PCBA quick diagnosis, the device enables rapid location of defect positions through its electricity quick check function. By adjusting the temperature range, users can troubleshoot defects in detail, identifying components operating outside normal thermal parameters. The 48,640-point measurement resolution provides sufficient detail for identifying subtle temperature variations across circuit boards and electronic assemblies. The system's compatibility with various thermal imaging models means it can be modified for different equipment setups, extending its utility across multiple inspection stations or laboratory environments.

Everyday Home Use

While primarily designed for professional diagnostic applications, the thermal imaging detector could assist hobbyists and electronics enthusiasts with detailed component analysis in personal projects. The intuitive visible light and thermal imaging alignment helps users correlate physical components with thermal signatures when troubleshooting custom circuits or repairing electronic devices. The protective lens cover and straightforward mounting system make it suitable for occasional use in workshop environments where precise temperature measurement enhances diagnostic accuracy beyond basic multimeter testing.

Benefits and Buying Value

The thermal imaging detector offers practical advantages through its measurement accuracy, compatibility features, and diagnostic visualisation capabilities. Its value derives from enhancing existing microscope systems with detailed thermal analysis without requiring complete equipment replacement.

Reuse and Low Maintenance

The device requires minimal maintenance beyond basic lens protection when not in use and ensuring compatible light sources are employed. The protective cover prevents dust accumulation and potential damage to the thermal sensor, extending its operational lifespan in workshop environments. The sturdy construction of the rotating mechanism and mounting hardware withstands repeated adjustments between different microscope configurations, supporting reuse across multiple inspection setups. Compatibility with various thermal imaging models through modification extends the product's usefulness as equipment evolves or changes in diagnostic facilities.

Why Choose This Product

This thermal imaging detector provides specific advantages for microscope-based inspection work through its high-resolution 48,640-point temperature measurement and flexible mounting system. The adjustable rotation mechanism accommodates different microscope heights and viewing angles, ensuring optimal alignment for accurate thermal analysis. Including both vertical fixing rod and microscope extension support extends compatibility to various equipment configurations, while the 3D effect mode offers evaluators enhanced visualisation of heat distribution patterns. For technicians needing precise temperature measurement during PCBA diagnostics and electrical leakage checking, this device delivers detailed thermal data integrated seamlessly with standard microscope systems.
