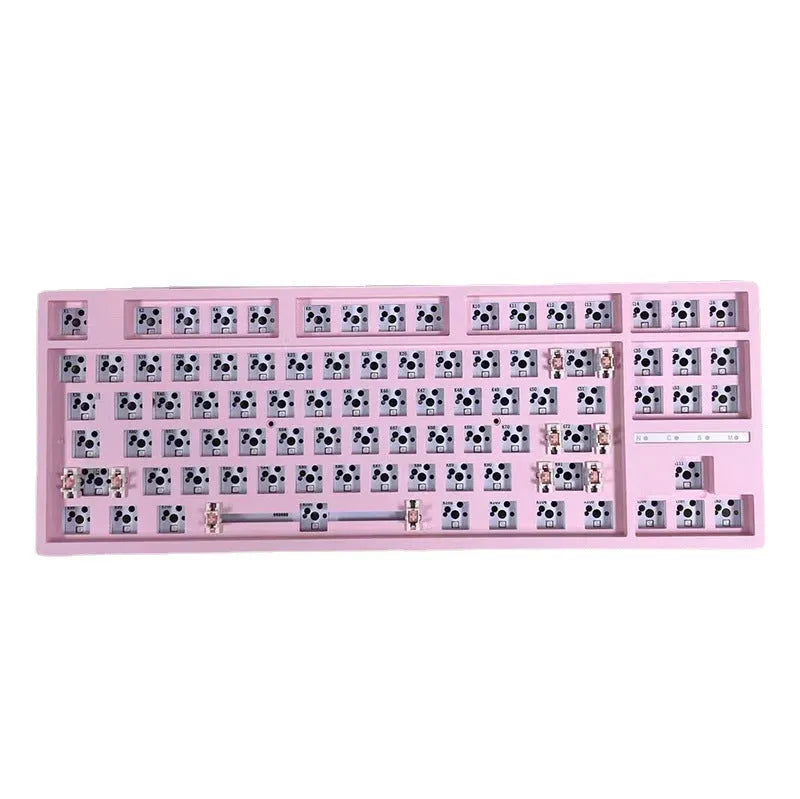

DIY 75% Layout Hot-Swap Mechanical Keyboard Kit with Gasket Mount and Multiple Colour Options

This kit provides all the core structural components needed to build your own custom mechanical keyboard, centred around a 75% layout PCB. The 75% form factor is a popular choice, offering a compact footprint that saves desk space while keeping dedicated function keys, arrow keys, and a navigation cluster accessible. The inclusion of a hot-swappable PCB is a significant benefit for builders of all skill levels, as it removes the requirement for soldering equipment and expertise. Simply press your chosen mechanical switches into the sockets, and they are electrically connected, allowing for effortless experimentation with different switch types. The kit arrives with a plastic case featuring a gasket mount design, a keycap puller, and a stabiliser wire, giving you a practical starting point for a personalised typing project.

Features and Construction

The construction of this keyboard centres on its gasket-mounted, hot-swappable design housed within a plastic case. This combination delivers a specific user experience focused on customisation ease and a particular typing feel, without the need for specialist tools.

Material and Build

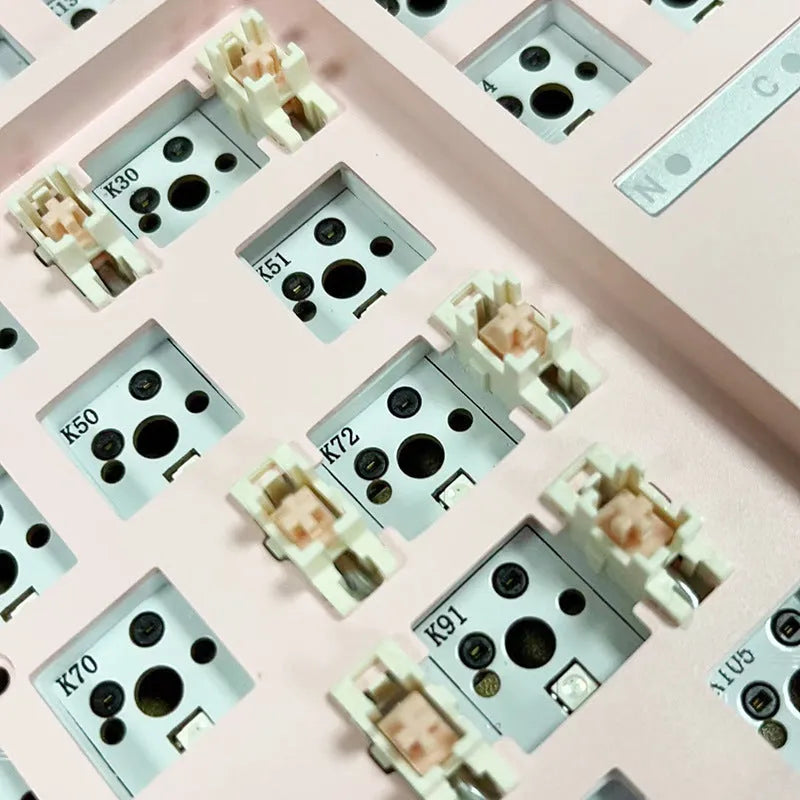

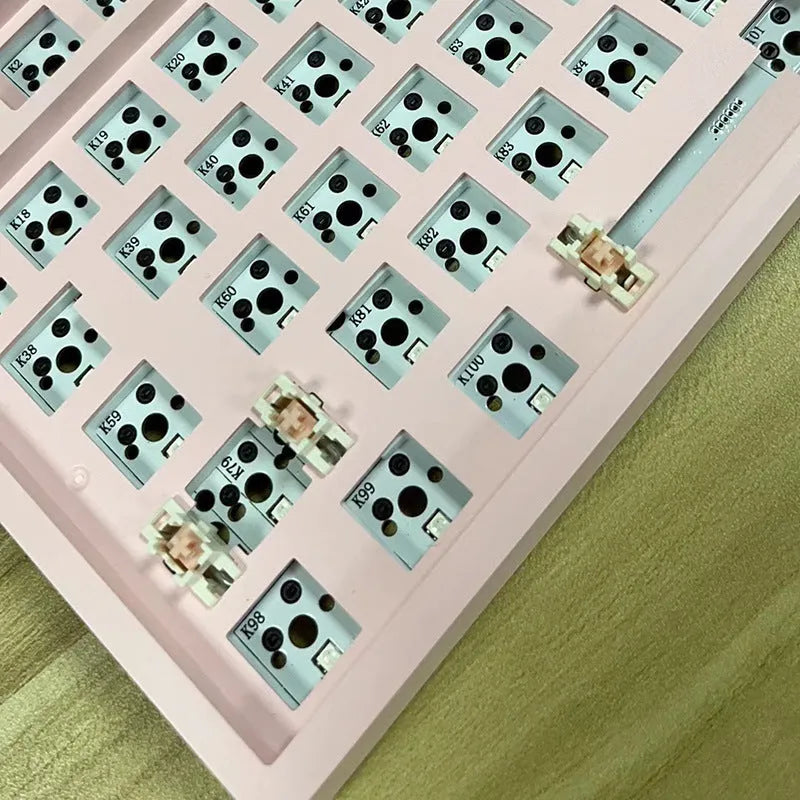

The keyboard's case is made from plastic, forming a rigid external shell that determines the board's overall profile and aesthetic. The internal mounting system utilises a gasket design, where rubber or silicone gaskets sit between the case and the plate/PCB assembly. This method aims to isolate the typing components from the hard case, which can reduce vibration transfer and alter the sound signature towards a softer, less harsh note compared to a direct tray-mount screw connection. The hot-swap sockets are pre-installed on the PCB, accepting any compatible 3-pin or 5-pin mechanical switch, which clips in securely for a reliable connection.

Size and Practical Fit

With dimensions of 360mm in length, 136mm in width, and 28mm in height, this 75% layout kit occupies a midsize portion of your desk. The 75% layout typically accommodates around 84 keys, eliminating the numpad and some navigation keys found on a full-size board but retaining most other functions in a condensed format. This size makes it a versatile choice for both gaming and general productivity, where desk real estate is valuable. The 28mm height contributes to a specific typing angle, which may be used as-is or altered with an aftermarket wrist rest depending on user preference.

Uses and Placement

The assembled keyboard from this kit suits a range of environments, from dedicated home office setups to shared gaming stations. Its customisable nature allows it to be tailored for specific noise levels, actuation feels, and visual styles to match its intended use case.

Event or Professional Use

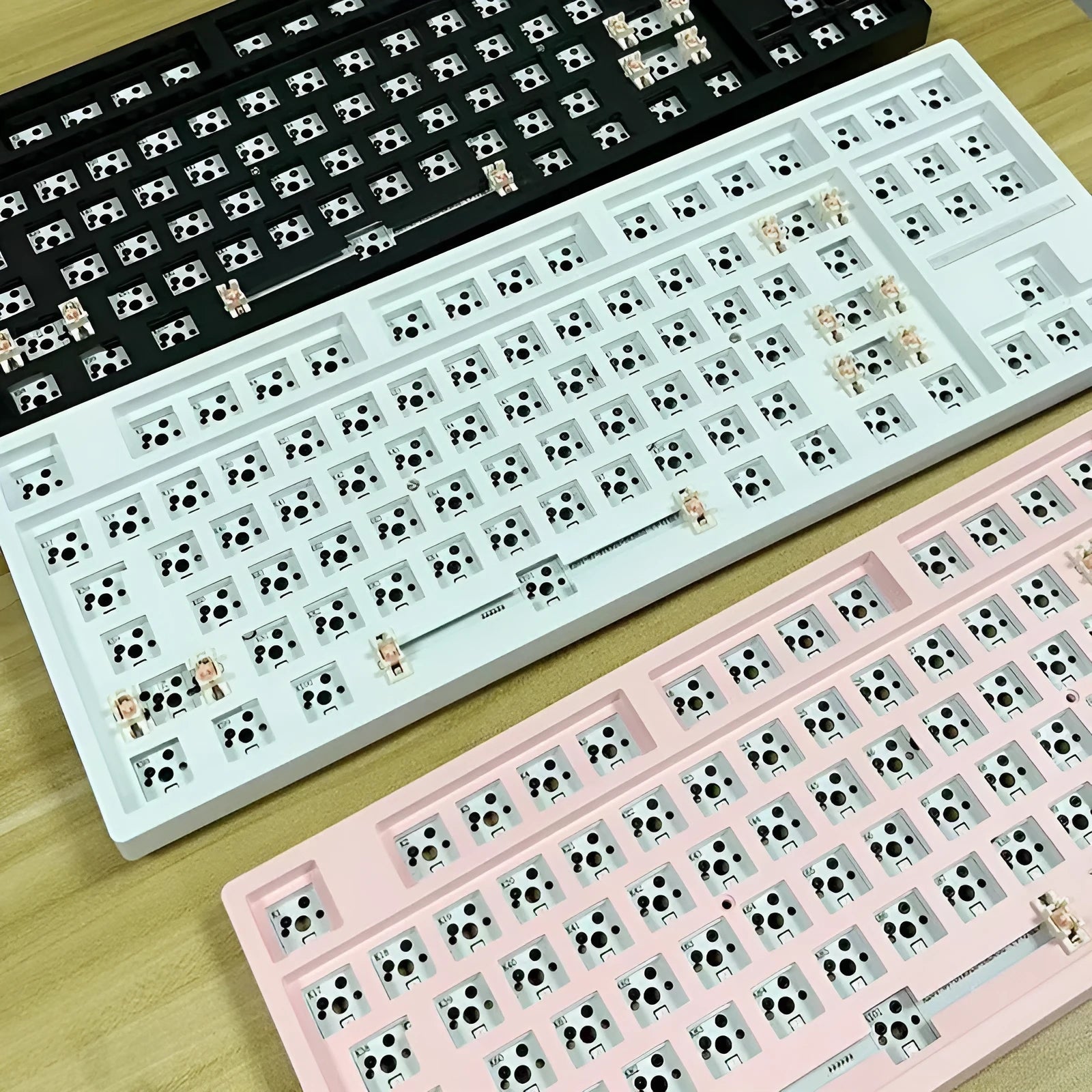

For LAN gaming events or professional content creation spaces, the ability to hot-swap switches is highly practical. A competitor could quickly change to a lighter actuation switch for a long gaming session, or a streamer could install quieter switches to minimise microphone noise during broadcasts. The variety of nine colour styles—including solid black, white, pink, and their transparent or RGB-accented counterparts—allows the keyboard to be colour-matched to a team's branding, a stream overlay, or a professional studio's aesthetic with relative ease.

Everyday Home Use

In a home office or study, the DIY aspect offers a deeply personal tool. A user can select switches based on preferred tactile feedback and noise level, building a keyboard that precisely matches their typing style for long document writing or coding. The compact 75% layout frees up space for a mouse pad or notepad on smaller desks. The transparent case options (Black Transparent, Pink Transparent, White Transparent) enable underglow lighting from compatible PCB LEDs to diffuse through the case, adding ambient light to a workspace without needing a separate lamp.

Benefits and Buying Value

The value of this kit lies in its role as a foundational platform for a custom mechanical keyboard, offering key convenience features and aesthetic choice that ready-made boards often lack at a similar entry point.

Reuse and Low Maintenance

The hot-swap socket system future-proofs your investment. If a single switch fails, it can be pulled and replaced in seconds without desoldering. As your preferences evolve, you can incrementally upgrade switches or change them seasonally without buying a whole new keyboard. The plastic case is durable for daily use and easy to wipe clean. The inclusion of the keycap puller and stabiliser wire means these essential maintenance tools are always on hand for cleaning or modding, preventing the need to purchase them separately.

Why Choose This Product

This kit stands out for delivering a gasket mount design and hot-swap functionality in a single package, which are two highly sought-after features in the custom keyboard community. It provides a clear upgrade path over basic tray-mount, soldered beginner kits. The choice of nine distinct colour styles is unusually broad for a kit at this level, allowing for significant visual personalisation from the outset. It is a logical choice for someone wanting to step into custom mechanical keyboards, seeking the tailored typing experience of a gasket mount, the flexibility of hot-swap, and a specific colour to match their setup, all without the complexity of sourcing individual case, PCB, and plate components separately.
