DELL Optiplex ATX 24P to 8P Power Adapter Cable: Use Standard PSUs in 3020, 7020, 9020 & T1700

This 30cm power adapter cable solves a specific compatibility issue for owners of certain DELL Optiplex and T-series desktop computers. It allows you to connect a standard, widely available ATX power supply unit (PSU) to the proprietary 8-pin motherboard power header found on models like the Optiplex 3020, 7020, 9020, and T1700. By bridging this connection gap, it provides flexibility in upgrading or replacing the power supply in these systems, enabling the use of higher-wattage or more reliable standard ATX units. The cable is constructed with all copper tinned wire and is designed to support power supplies up to 1000W, making it a practical solution for modifications or repairs.

Features and Construction

This adapter is built for a specific electrical interface conversion, focusing on durable materials and correct pinouts for safe operation.

Material and Build

The cable is manufactured using all copper tinned wire. The tinning process helps protect the copper from oxidation and corrosion, which can maintain electrical conductivity over time. The wire gauge used is 18AWG, which is a common standard for computer power cables, and it features a 0.18x34 copper core construction. This design contributes to the cable's ability to handle the current required for high-power configurations, supporting power supplies rated up to 1000W.

Size and Practical Fit

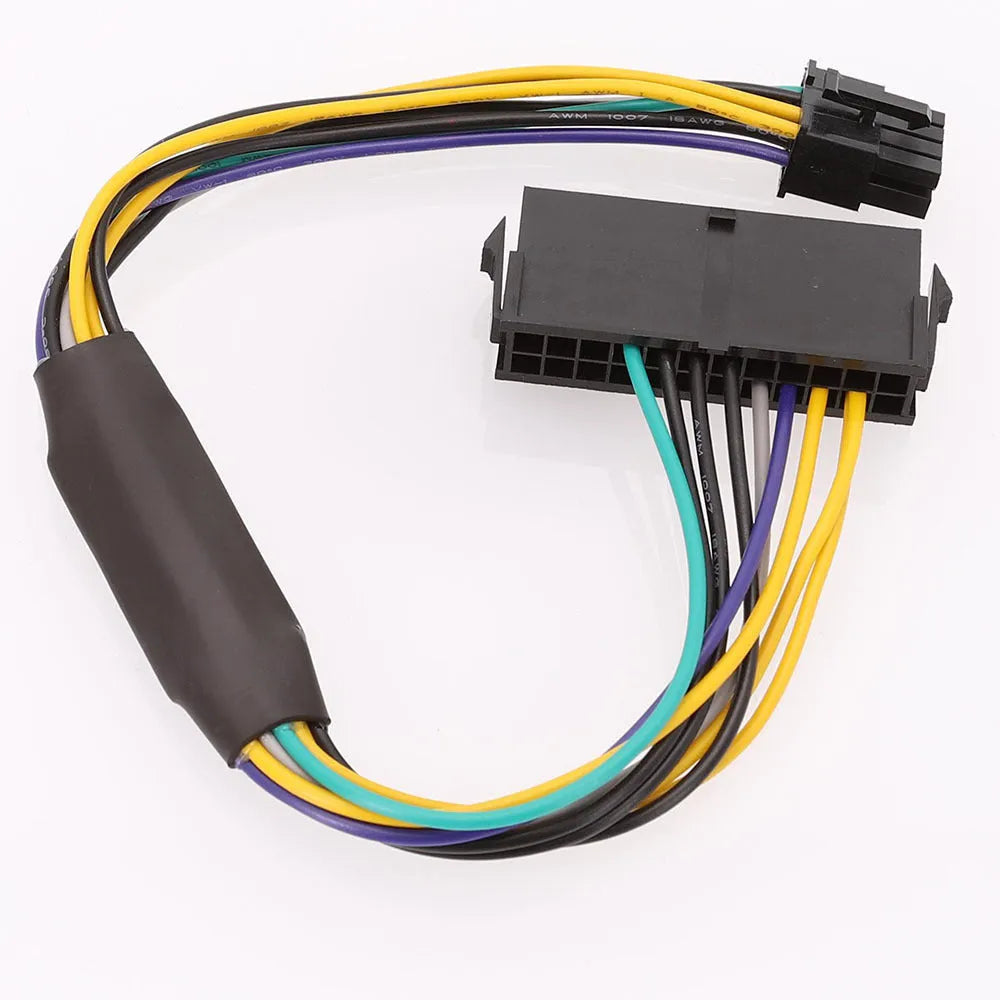

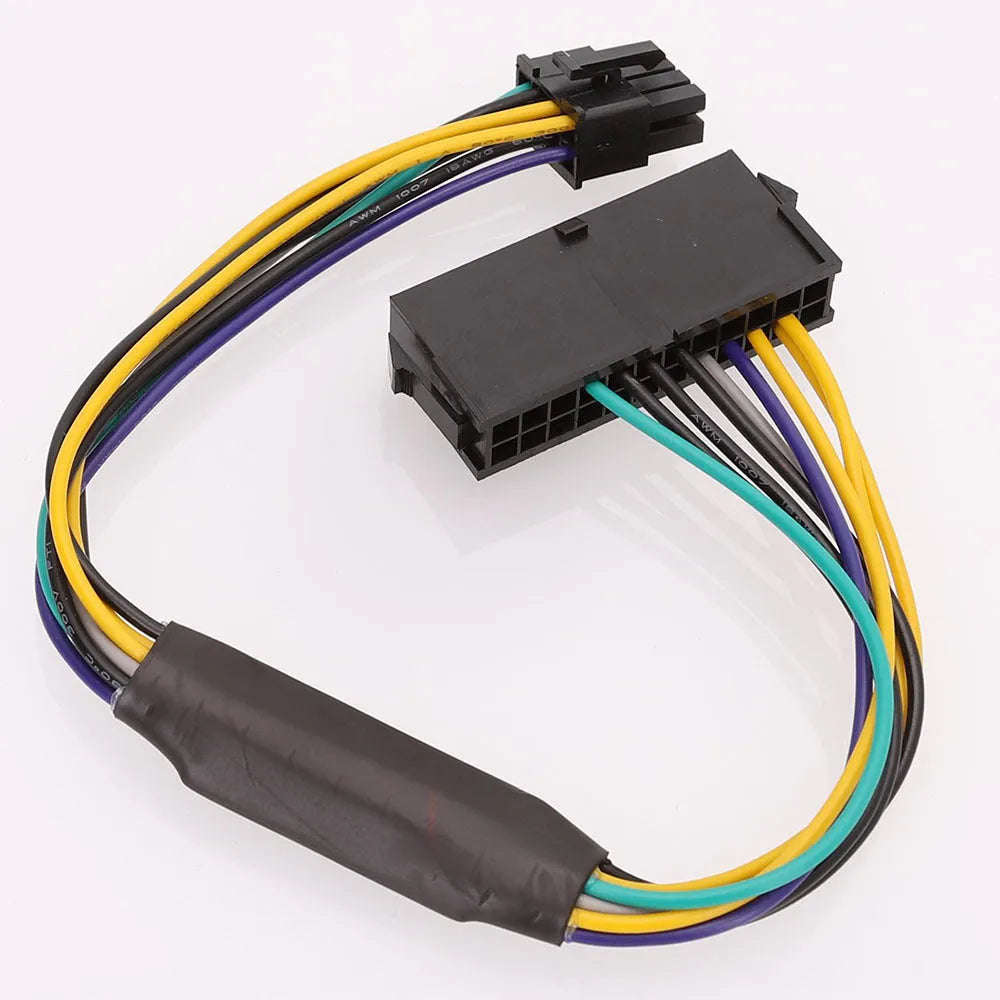

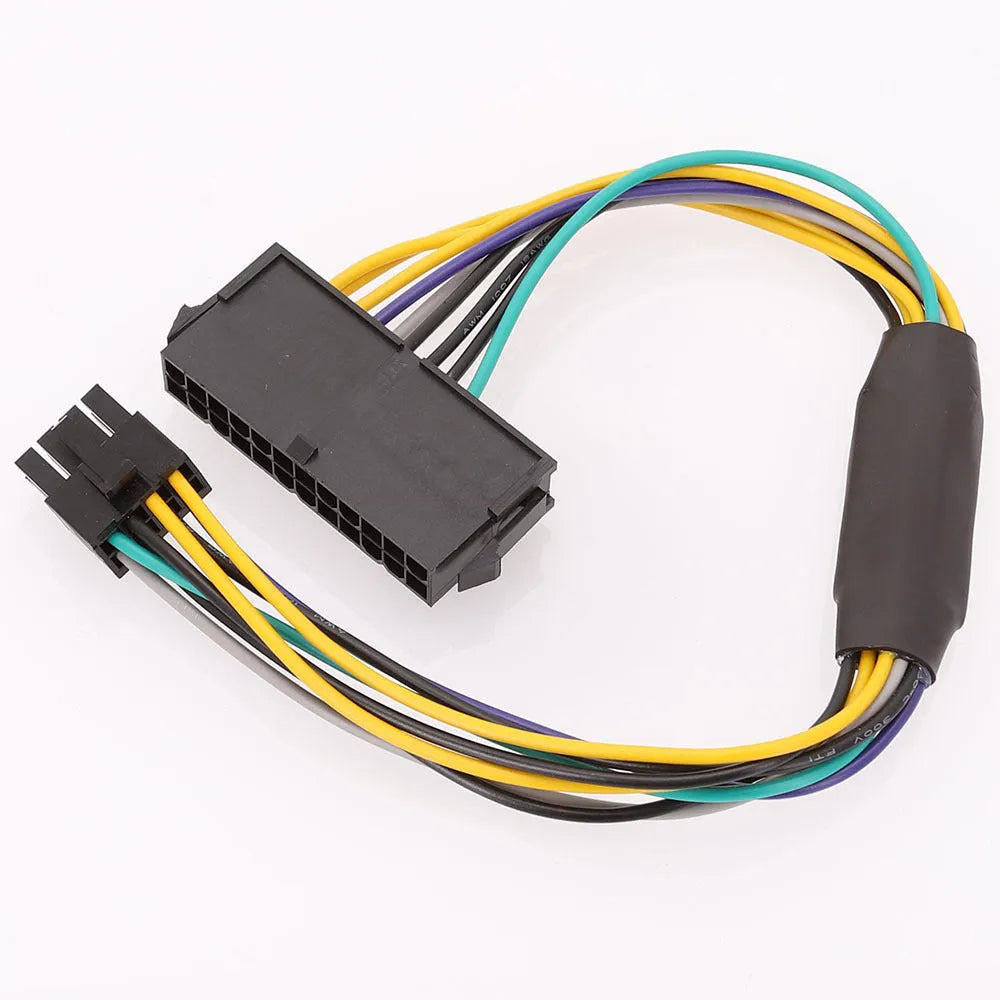

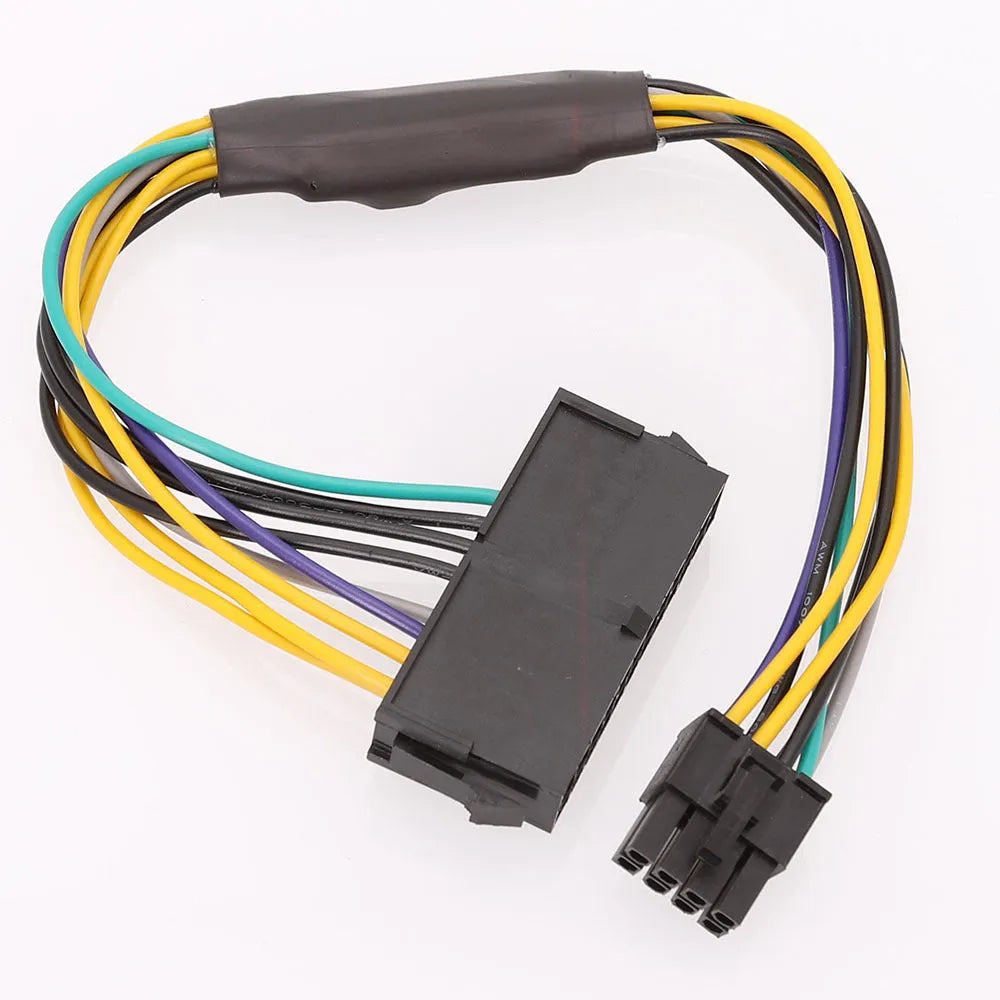

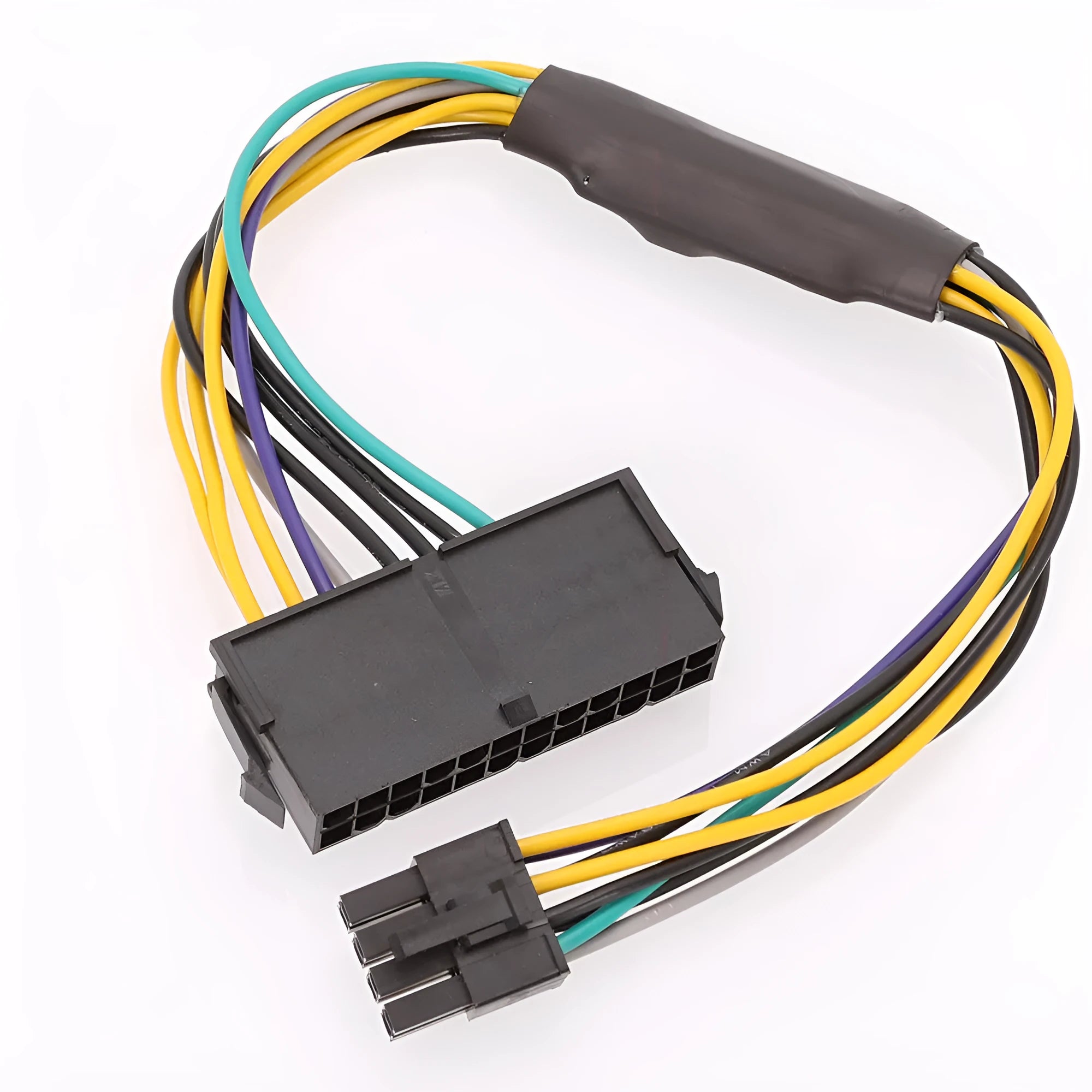

The cable has a total length of 30cm (approximately 11.8 inches), which provides enough slack for typical routing inside a desktop computer chassis while avoiding excessive cable clutter. It has a single weight of 42 grams. One end terminates in a standard 24-pin ATX male connector, intended to plug into the output of a compatible ATX power supply. The other end features the proprietary 8-pin male connector designed specifically for the motherboard header on supported DELL systems.

Uses and Placement

This cable serves a clear purpose in specific upgrade or repair scenarios for DELL business desktops.

Upgrade and Repair Use

The primary use is to replace a failing or underpowered original DELL power supply with a standard ATX unit. This is common in scenarios where users are adding more powerful graphics cards, additional storage, or other components that demand more power than the original PSU can provide. It is also useful for repair situations where sourcing an original DELL power supply is difficult or costly, allowing a standard ATX PSU to be used instead.

System Compatibility

The cable is confirmed compatible with DELL Optiplex 3020, 7020, 9020, and T1700 desktop models. It also supports DELL motherboards using the H61, H81, Q77, Q87, B75, A75, Q75, and Q65 chipsets. It is crucial to verify that your specific motherboard has the 8-pin power header. Importantly, this cable only provides power to the motherboard's main 8-pin connector; it does not supply power to a separate 4-pin CPU header that some of these motherboards may also have.

Benefits and Buying Value

The value of this adapter lies in its targeted functionality, enabling greater hardware flexibility.

Reuse and Flexibility

This cable facilitates the reuse of existing standard ATX power supplies, which are often more readily available and come in a wider range of wattages and efficiency ratings than proprietary DELL units. It can extend the usable life of a DELL desktop by allowing a simple PSU upgrade rather than a full system replacement. The construction with copper tinned wire is aimed at providing reliable, long-term connectivity.

Why Choose This Product

Choose this adapter if you need to connect a standard ATX power supply to a compatible DELL Optiplex or T-series motherboard. Its value is in solving a specific compatibility problem with a dedicated cable built to computer power cable standards. Before purchase, confirm your power supply uses the standard ATX 24-pin layout, ensure your chassis has physical space for a standard ATX PSU, and check whether your specific motherboard requires an additional CPU 4-pin power cable, which this product does not provide.
